Products
Dock Levelers
The heart of every loading dock. Hydraulic, mechanical, and edge-of-dock levelers engineered for safety and built for demanding logistics environments.
Dock Levelers

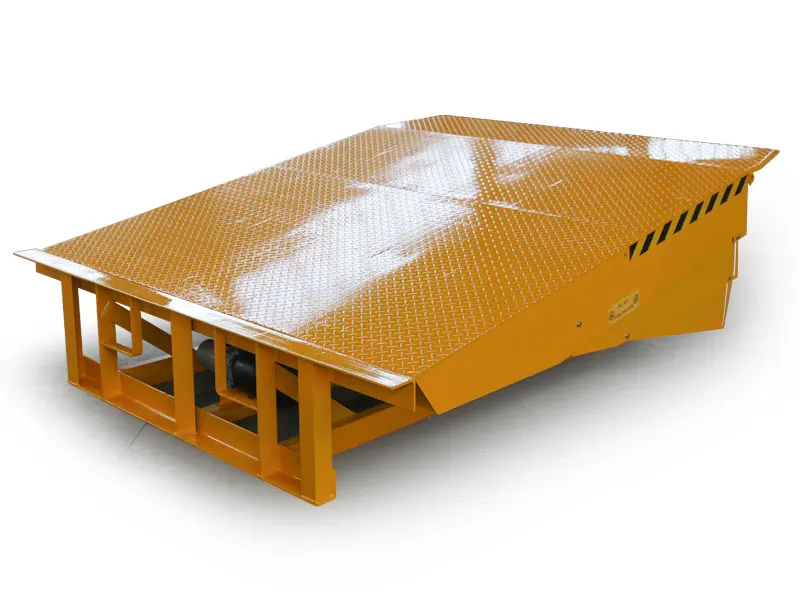

Hydraulic Dock Leveler
Power-Smooth Operation for High-Volume Docks
REDA hydraulic dock levelers deliver smooth, reliable operation for loading docks handling high traffic volumes. The electro-hydraulic power unit provides effortless lip extension and platform positioning, controlled by a single push-button station. Available in standard capacities from 60 kN to 100 kN with platform sizes up to 4500 × 2250 mm.
Key Features
Electro-Hydraulic Power Unit
Single-button control raises the platform and extends the lip in one smooth motion. DC 24V safety voltage standard.
Load Capacity: 60–100 kN
Heavy-duty Q345 structural steel frame. Designed for 24/7 operation in high-volume logistics environments.
Full Safety Interlock
PLC-based interlocking with vehicle restraint, overhead door, and dock shelter prevents unauthorized operation.
CE / UL Certified
Compliant with EN 1398 safety requirements. ISO 9001 factory quality control on every unit.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Series | RDS-HE (Hydraulic) |
| Load Capacity | 60 kN / 80 kN / 100 kN |
| Platform Size | 2000–4500 × 2000 / 2250 mm |
| Lip Types | Hinged Swing / Telescopic / 3-Segment |
| Power Unit | Electro-Hydraulic, DC 24V / AC 380V |
| Surface Treatment | Powder Coated RAL 9005 / Hot-Dip Galvanized |
| Control | Push-Button Station / PLC Touch Panel |
| Warranty | 3-Year Structural |
Dock Levelers

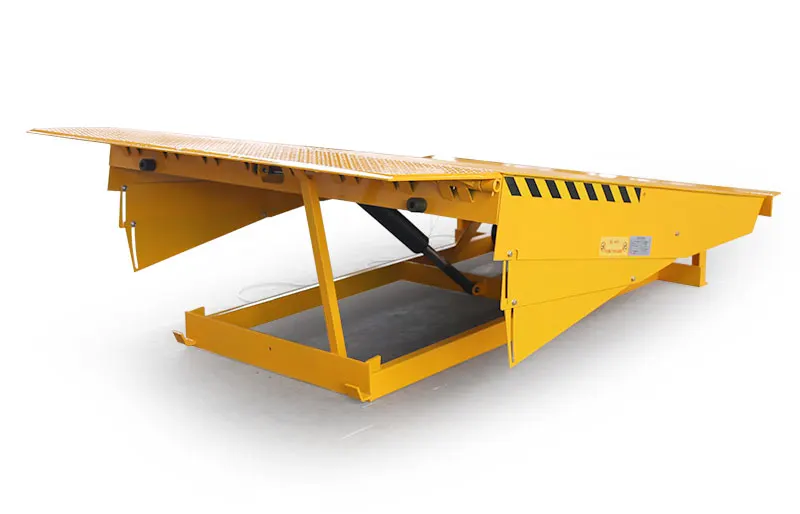

Mechanical Dock Leveler
Reliable Spring-Assisted Operation. Zero Electricity Required.
REDA mechanical dock levelers use a spring-assisted lifting mechanism with manual pull-chain activation — no electrical power needed. Ideal for facilities where simplicity, reliability, and low maintenance are priorities. Available in the same rugged Q345 steel construction as our hydraulic models.
Key Features
Spring-Assisted Lifting
Torsion spring system provides counterbalance. Pull-chain activation — no electricity, no hydraulics.
Lowest Total Cost of Ownership
Zero electrical consumption. Minimal maintenance. Simple mechanical components are easy to service.
Load Capacity: 60–100 kN
Same heavy-duty Q345 steel frame as our hydraulic line. Built for demanding dock environments.
Built-In Safety Stops
Mechanical fall-safe devices prevent uncontrolled descent. CE certified to EN 1398.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Series | RDS-ME (Mechanical) |
| Load Capacity | 60 kN / 80 kN / 100 kN |
| Platform Size | 2000–4500 × 2000 / 2250 mm |
| Operation | Pull-Chain / Spring-Assisted |
| Power Required | None |
| Surface Treatment | Powder Coated RAL 9005 / Hot-Dip Galvanized |
| Maintenance | Quarterly Lubrication |
| Warranty | 3-Year Structural |
Dock Levelers

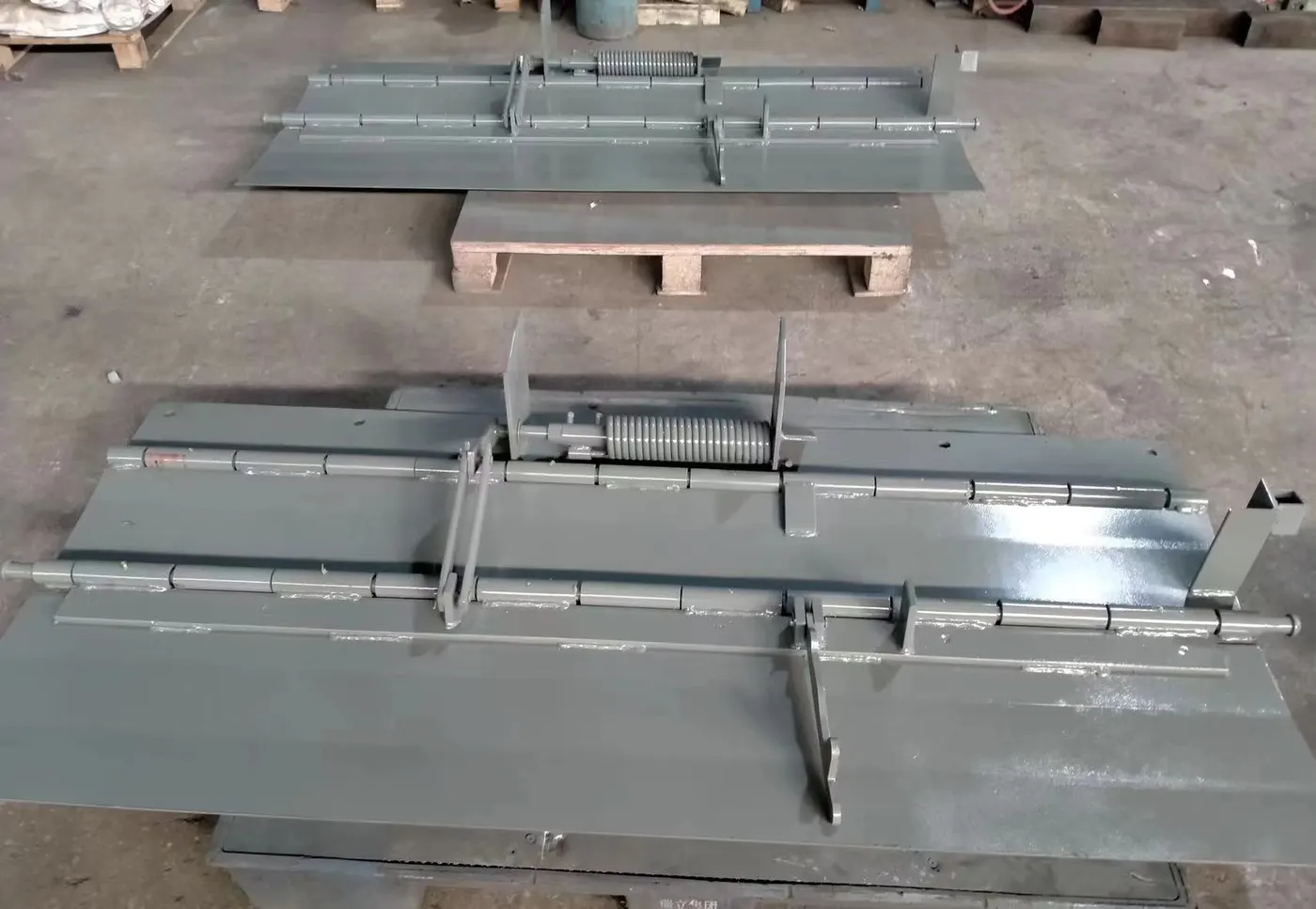

Edge-of-Dock Leveler (Mini)
Compact Solution for Space-Constrained Docks.
REDA edge-of-dock levelers mount directly to the dock face without requiring a pit — perfect for retrofit projects or docks with limited space. They bridge the gap between the dock and truck bed in seconds. Despite their compact size, they handle loads up to 60 kN.
Key Features
No Pit Required
Bolt-on installation to existing dock face. Ideal for retrofits and space-constrained loading bays.
Quick Deployment
Simple manual or hydraulic actuation deploys the bridge plate in seconds.
Load Capacity: Up to 60 kN
Surprisingly strong for its size. Handles pallet jacks, forklifts, and cargo carts.
Minimal Maintenance
Simple design with fewer moving parts. Annual inspection typically sufficient.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Series | RDS-BL (Edge-of-Dock) |
| Load Capacity | 40 kN / 60 kN |
| Platform Size | Custom to dock width × 500–800 mm depth |
| Operation | Manual / Hydraulic Assist |
| Mounting | Dock Face Bolt-On (No Pit) |
| Surface Treatment | Powder Coated RAL 9005 |
| Material | Q345 Structural Steel |
| Warranty | 3-Year Structural |
